complexType CounterpartyType

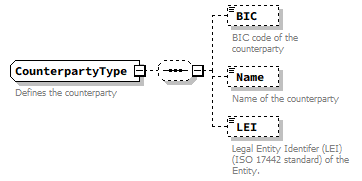

diagram
namespace	http://www.fundsxml.org/XMLSchema/3.1
children	BIC Name LEI
used by	elements  DerivativeType/Counterparty ForeignExchangeTradeType/Counterparty SwapType/Counterparty ReposType/Counterparty
annotation	documentation Defines the counterparty
source	<xs:complexType name="CounterpartyType">   <xs:annotation>     <xs:documentation xml:lang="en">Defines the counterparty</xs:documentation>   </xs:annotation>   <xs:sequence minOccurs="0">     <xs:element name="BIC" type="BicCodeType" minOccurs="0">       <xs:annotation>         <xs:documentation>BIC code of the counterparty</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Name" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Name of the counterparty</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="LEI" type="LEICodeType" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="en">Legal Entity Identifer (LEI) (ISO 17442 standard) of the Entity.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element CounterpartyType/BIC

diagram
namespace	http://www.fundsxml.org/XMLSchema/3.1
type	BicCodeType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minLength  3 maxLength  12
annotation	documentation BIC code of the counterparty
source	<xs:element name="BIC" type="BicCodeType" minOccurs="0">   <xs:annotation>     <xs:documentation>BIC code of the counterparty</xs:documentation>   </xs:annotation> </xs:element>

element CounterpartyType/Name

diagram
namespace	http://www.fundsxml.org/XMLSchema/3.1
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Name of the counterparty
source	<xs:element name="Name" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Name of the counterparty</xs:documentation>   </xs:annotation> </xs:element>

element CounterpartyType/LEI

diagram
namespace	http://www.fundsxml.org/XMLSchema/3.1
type	LEICodeType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minLength  20 maxLength  20 pattern  ([0-9a-zA-Z]{18}[0-9]{2})
annotation	documentation Legal Entity Identifer (LEI) (ISO 17442 standard) of the Entity.
source	<xs:element name="LEI" type="LEICodeType" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="en">Legal Entity Identifer (LEI) (ISO 17442 standard) of the Entity.</xs:documentation>   </xs:annotation> </xs:element>
