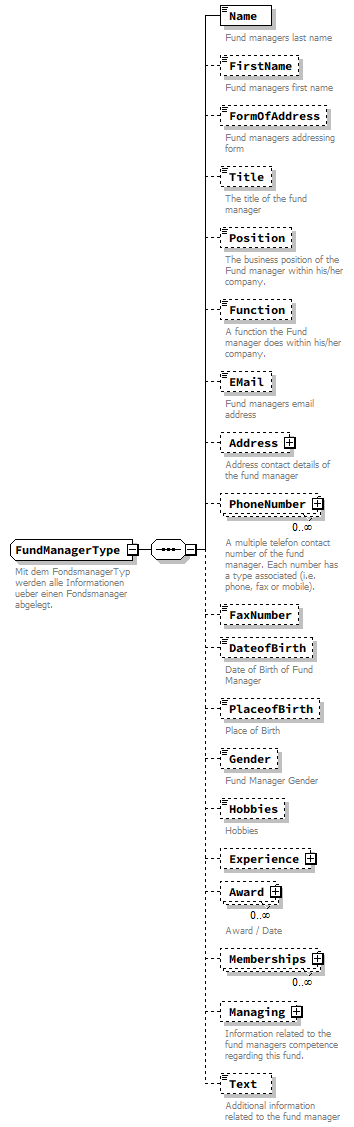

diagram | |||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||
children | Name FirstName FormOfAddress Title Position Function EMail Address PhoneNumber FaxNumber DateofBirth PlaceofBirth Gender Hobbies Experience Award Memberships Managing Text | ||
used by |
|
||
annotation |
|
||
source | <xs:complexType name="FundManagerType"> <xs:annotation> <xs:documentation xml:lang="de">Mit dem FondsmanagerTyp werden alle Informationen ueber einen Fondsmanager abgelegt.</xs:documentation> <xs:documentation xml:lang="en"/> </xs:annotation> <xs:sequence> <xs:element name="Name" type="xs:string"> <xs:annotation> <xs:documentation xml:lang="en">Fund managers last name</xs:documentation> <xs:documentation xml:lang="de">Der Nachname des Fondsmanagers.</xs:documentation> </xs:annotation> </xs:element> <xs:element name="FirstName" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="en">Fund managers first name</xs:documentation> <xs:documentation xml:lang="de">Der Vorname des Fondsmanagers.</xs:documentation> </xs:annotation> </xs:element> <xs:element name="FormOfAddress" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="en">Fund managers addressing form</xs:documentation> <xs:documentation xml:lang="de">Die Anrede des Fondsmanagers.</xs:documentation> </xs:annotation> </xs:element> <xs:element name="Title" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="en">The title of the fund manager</xs:documentation> <xs:documentation xml:lang="de">Der Titel des Fondsmanagers.</xs:documentation> </xs:annotation> </xs:element> <xs:element name="Position" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="en">The business position of the Fund manager within his/her company.</xs:documentation> <xs:documentation xml:lang="de">Die berufliche Position des Fondsmanagers innerhalb seiner Gesellschaft.</xs:documentation> </xs:annotation> </xs:element> <xs:element name="Function" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="en">A function the Fund manager does within his/her company.</xs:documentation> <xs:documentation xml:lang="de">Die berufliche Funktion des Fondsmanagers innerhalb seiner Gesellschaft.</xs:documentation> </xs:annotation> </xs:element> <xs:element name="EMail" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="en">Fund managers email address</xs:documentation> <xs:documentation xml:lang="de">Die E-Mail-Adresse des Fondsmanagers</xs:documentation> </xs:annotation> </xs:element> <xs:element name="Address" type="AddressType" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="en">Address contact details of the fund manager</xs:documentation> <xs:documentation xml:lang="de">Die Adresse des Fondsmanagers.</xs:documentation> </xs:annotation> </xs:element> <xs:element name="PhoneNumber" type="PhoneNumberType" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation xml:lang="en">A multiple telefon contact number of the fund manager. Each number has a type associated (i.e. phone, fax or mobile).</xs:documentation> <xs:documentation xml:lang="de">Die Rufnummerm des Fondsmanagers. Hier koennen mehrere Elemente erscheinen, die jeweils einen Typ von Rufnummer beschreiben, also eine Telefonnummer, eine Faxnummer oder eine Mobilfunknummer.</xs:documentation> </xs:annotation> </xs:element> <xs:element name="FaxNumber" type="xs:string" minOccurs="0"/> <xs:element name="DateofBirth" type="xs:date" minOccurs="0"> <xs:annotation> <xs:documentation>Date of Birth of Fund Manager</xs:documentation> </xs:annotation> </xs:element> <xs:element name="PlaceofBirth" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation>Place of Birth</xs:documentation> </xs:annotation> </xs:element> <xs:element name="Gender" minOccurs="0"> <xs:annotation> <xs:documentation>Fund Manager Gender</xs:documentation> </xs:annotation> <xs:simpleType> <xs:restriction base="xs:string"> <xs:enumeration value="Male"/> <xs:enumeration value="Female"/> </xs:restriction> </xs:simpleType> </xs:element> <xs:element name="Hobbies" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation>Hobbies</xs:documentation> </xs:annotation> </xs:element> <xs:element name="Experience" minOccurs="0"> <xs:complexType> <xs:sequence> <xs:element name="BriefBiographie" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>Biographical dates of the fund manager including companies which he worked for, positions held in the companies and the respective since and until information</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element name="Company" type="xs:string"/> <xs:element name="PositionHeld" type="xs:string"/> <xs:element name="DateStartEnd" type="xs:string"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="ExperienceSince" type="xs:int"> <xs:annotation> <xs:documentation xml:lang="en">The total professional experience of the fund manager expressed in years.</xs:documentation> <xs:documentation xml:lang="de">Die Berufserfahrung des Fondsmanagers insgesamt in Jahren.</xs:documentation> </xs:annotation> </xs:element> <xs:element name="ManagingExperienceSince" type="xs:date" minOccurs="0"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Award" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>Award / Date</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element name="Name" type="xs:string"/> <xs:element name="Date" type="xs:date"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Memberships" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="Organisation" type="xs:string"/> <xs:element name="Title" type="xs:string"/> <xs:element name="Since" type="xs:date"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Managing" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="en">Information related to the fund managers competence regarding this fund.</xs:documentation> <xs:documentation xml:lang="de">Informationen ueber die Zustaendigkeit des Fondsmanagers zu diesem Fonds</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element name="Since" type="xs:date"> <xs:annotation> <xs:documentation xml:lang="en">Tha starting date of the period when the fund manager was responsible for this fund.</xs:documentation> <xs:documentation xml:lang="de">Datum seit wann der Fondsmanager fuer diesen Fonds zustaendig ist oder war.</xs:documentation> </xs:annotation> </xs:element> <xs:element name="Until" type="xs:date" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="en">The closing date of the fund managers responsibility for the fund.</xs:documentation> <xs:documentation xml:lang="de">Datum bis wann der Fondsmanager fuer diesen Fonds zustaendig ist oder war.</xs:documentation> </xs:annotation> </xs:element> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Text" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="en">Additional information related to the fund manager</xs:documentation> <xs:documentation xml:lang="de">Mit Freitext hat man wiederum die Moeglichkeit zusaetzliche Informationen zum Fondsmanger abzulegen.</xs:documentation> </xs:annotation> </xs:element> </xs:sequence> </xs:complexType> |
diagram | |||||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||||
type | xs:string | ||||
properties |
|
||||
annotation |
|
||||
source | <xs:element name="Name" type="xs:string"> <xs:annotation> <xs:documentation xml:lang="en">Fund managers last name</xs:documentation> <xs:documentation xml:lang="de">Der Nachname des Fondsmanagers.</xs:documentation> </xs:annotation> </xs:element> |
diagram | |||||||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||||||
type | xs:string | ||||||
properties |
|
||||||
annotation |
|
||||||
source | <xs:element name="FirstName" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="en">Fund managers first name</xs:documentation> <xs:documentation xml:lang="de">Der Vorname des Fondsmanagers.</xs:documentation> </xs:annotation> </xs:element> |
diagram | |||||||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||||||
type | xs:string | ||||||
properties |
|
||||||
annotation |
|
||||||
source | <xs:element name="FormOfAddress" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="en">Fund managers addressing form</xs:documentation> <xs:documentation xml:lang="de">Die Anrede des Fondsmanagers.</xs:documentation> </xs:annotation> </xs:element> |
diagram | |||||||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||||||
type | xs:string | ||||||
properties |
|
||||||
annotation |
|
||||||
source | <xs:element name="Title" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="en">The title of the fund manager</xs:documentation> <xs:documentation xml:lang="de">Der Titel des Fondsmanagers.</xs:documentation> </xs:annotation> </xs:element> |
diagram | |||||||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||||||
type | xs:string | ||||||
properties |
|
||||||
annotation |
|
||||||
source | <xs:element name="Position" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="en">The business position of the Fund manager within his/her company.</xs:documentation> <xs:documentation xml:lang="de">Die berufliche Position des Fondsmanagers innerhalb seiner Gesellschaft.</xs:documentation> </xs:annotation> </xs:element> |
diagram | |||||||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||||||
type | xs:string | ||||||
properties |
|
||||||
annotation |
|
||||||
source | <xs:element name="Function" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="en">A function the Fund manager does within his/her company.</xs:documentation> <xs:documentation xml:lang="de">Die berufliche Funktion des Fondsmanagers innerhalb seiner Gesellschaft.</xs:documentation> </xs:annotation> </xs:element> |
diagram | |||||||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||||||
type | xs:string | ||||||
properties |
|
||||||
annotation |
|
||||||
source | <xs:element name="EMail" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="en">Fund managers email address</xs:documentation> <xs:documentation xml:lang="de">Die E-Mail-Adresse des Fondsmanagers</xs:documentation> </xs:annotation> </xs:element> |
diagram | |||||||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||||||
type | AddressType | ||||||
properties |
|
||||||
children | Street PostCode Town Country Text | ||||||
annotation |
|
||||||
source | <xs:element name="Address" type="AddressType" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="en">Address contact details of the fund manager</xs:documentation> <xs:documentation xml:lang="de">Die Adresse des Fondsmanagers.</xs:documentation> </xs:annotation> </xs:element> |
diagram | |||||||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||||||
type | PhoneNumberType | ||||||
properties |
|
||||||
children | Type CountryCode AreaCode PhoneNumber DirectNumber Text | ||||||
annotation |
|
||||||
source | <xs:element name="PhoneNumber" type="PhoneNumberType" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation xml:lang="en">A multiple telefon contact number of the fund manager. Each number has a type associated (i.e. phone, fax or mobile).</xs:documentation> <xs:documentation xml:lang="de">Die Rufnummerm des Fondsmanagers. Hier koennen mehrere Elemente erscheinen, die jeweils einen Typ von Rufnummer beschreiben, also eine Telefonnummer, eine Faxnummer oder eine Mobilfunknummer.</xs:documentation> </xs:annotation> </xs:element> |
diagram | |||||||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||||||
type | xs:string | ||||||
properties |
|
||||||
source | <xs:element name="FaxNumber" type="xs:string" minOccurs="0"/> |
diagram | |||||||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||||||
type | xs:date | ||||||
properties |
|
||||||
annotation |
|
||||||
source | <xs:element name="DateofBirth" type="xs:date" minOccurs="0"> <xs:annotation> <xs:documentation>Date of Birth of Fund Manager</xs:documentation> </xs:annotation> </xs:element> |
diagram | |||||||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||||||
type | xs:string | ||||||
properties |
|
||||||
annotation |
|
||||||
source | <xs:element name="PlaceofBirth" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation>Place of Birth</xs:documentation> </xs:annotation> </xs:element> |
diagram | ||||||||||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | |||||||||
type | restriction of xs:string | |||||||||
properties |
|
|||||||||
facets |
|
|||||||||
annotation |
|
|||||||||
source | <xs:element name="Gender" minOccurs="0"> <xs:annotation> <xs:documentation>Fund Manager Gender</xs:documentation> </xs:annotation> <xs:simpleType> <xs:restriction base="xs:string"> <xs:enumeration value="Male"/> <xs:enumeration value="Female"/> </xs:restriction> </xs:simpleType> </xs:element> |
diagram | |||||||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||||||
type | xs:string | ||||||
properties |
|
||||||
annotation |
|
||||||
source | <xs:element name="Hobbies" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation>Hobbies</xs:documentation> </xs:annotation> </xs:element> |
diagram | |||||||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||||||
properties |
|
||||||
children | BriefBiographie ExperienceSince ManagingExperienceSince | ||||||
source | <xs:element name="Experience" minOccurs="0"> <xs:complexType> <xs:sequence> <xs:element name="BriefBiographie" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>Biographical dates of the fund manager including companies which he worked for, positions held in the companies and the respective since and until information</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element name="Company" type="xs:string"/> <xs:element name="PositionHeld" type="xs:string"/> <xs:element name="DateStartEnd" type="xs:string"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="ExperienceSince" type="xs:int"> <xs:annotation> <xs:documentation xml:lang="en">The total professional experience of the fund manager expressed in years.</xs:documentation> <xs:documentation xml:lang="de">Die Berufserfahrung des Fondsmanagers insgesamt in Jahren.</xs:documentation> </xs:annotation> </xs:element> <xs:element name="ManagingExperienceSince" type="xs:date" minOccurs="0"/> </xs:sequence> </xs:complexType> </xs:element> |
diagram | |||||||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||||||
properties |
|
||||||
children | Company PositionHeld DateStartEnd | ||||||
annotation |
|
||||||
source | <xs:element name="BriefBiographie" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>Biographical dates of the fund manager including companies which he worked for, positions held in the companies and the respective since and until information</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element name="Company" type="xs:string"/> <xs:element name="PositionHeld" type="xs:string"/> <xs:element name="DateStartEnd" type="xs:string"/> </xs:sequence> </xs:complexType> </xs:element> |
diagram | |||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||
type | xs:string | ||
properties |
|
||
source | <xs:element name="Company" type="xs:string"/> |
diagram | |||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||
type | xs:string | ||
properties |
|
||
source | <xs:element name="PositionHeld" type="xs:string"/> |
diagram | |||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||
type | xs:string | ||
properties |
|
||
source | <xs:element name="DateStartEnd" type="xs:string"/> |
diagram | |||||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||||
type | xs:int | ||||
properties |
|
||||
annotation |
|
||||
source | <xs:element name="ExperienceSince" type="xs:int"> <xs:annotation> <xs:documentation xml:lang="en">The total professional experience of the fund manager expressed in years.</xs:documentation> <xs:documentation xml:lang="de">Die Berufserfahrung des Fondsmanagers insgesamt in Jahren.</xs:documentation> </xs:annotation> </xs:element> |
diagram | |||||||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||||||
type | xs:date | ||||||
properties |
|
||||||
source | <xs:element name="ManagingExperienceSince" type="xs:date" minOccurs="0"/> |
diagram | |||||||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||||||
properties |
|
||||||
children | Name Date | ||||||
annotation |
|
||||||
source | <xs:element name="Award" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>Award / Date</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element name="Name" type="xs:string"/> <xs:element name="Date" type="xs:date"/> </xs:sequence> </xs:complexType> </xs:element> |
diagram | |||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||
type | xs:string | ||
properties |
|
||
source | <xs:element name="Name" type="xs:string"/> |
diagram | |||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||
type | xs:date | ||
properties |
|
||
source | <xs:element name="Date" type="xs:date"/> |
diagram | |||||||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||||||
properties |
|
||||||
children | Organisation Title Since | ||||||
source | <xs:element name="Memberships" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="Organisation" type="xs:string"/> <xs:element name="Title" type="xs:string"/> <xs:element name="Since" type="xs:date"/> </xs:sequence> </xs:complexType> </xs:element> |
diagram | |||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||
type | xs:string | ||
properties |
|
||
source | <xs:element name="Organisation" type="xs:string"/> |
diagram | |||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||
type | xs:string | ||
properties |
|
||
source | <xs:element name="Title" type="xs:string"/> |
diagram | |||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||
type | xs:date | ||
properties |
|
||
source | <xs:element name="Since" type="xs:date"/> |
diagram | |||||||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||||||
properties |
|
||||||
children | Since Until | ||||||
annotation |
|
||||||
source | <xs:element name="Managing" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="en">Information related to the fund managers competence regarding this fund.</xs:documentation> <xs:documentation xml:lang="de">Informationen ueber die Zustaendigkeit des Fondsmanagers zu diesem Fonds</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element name="Since" type="xs:date"> <xs:annotation> <xs:documentation xml:lang="en">Tha starting date of the period when the fund manager was responsible for this fund.</xs:documentation> <xs:documentation xml:lang="de">Datum seit wann der Fondsmanager fuer diesen Fonds zustaendig ist oder war.</xs:documentation> </xs:annotation> </xs:element> <xs:element name="Until" type="xs:date" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="en">The closing date of the fund managers responsibility for the fund.</xs:documentation> <xs:documentation xml:lang="de">Datum bis wann der Fondsmanager fuer diesen Fonds zustaendig ist oder war.</xs:documentation> </xs:annotation> </xs:element> </xs:sequence> </xs:complexType> </xs:element> |
diagram | |||||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||||
type | xs:date | ||||
properties |
|
||||
annotation |
|
||||
source | <xs:element name="Since" type="xs:date"> <xs:annotation> <xs:documentation xml:lang="en">Tha starting date of the period when the fund manager was responsible for this fund.</xs:documentation> <xs:documentation xml:lang="de">Datum seit wann der Fondsmanager fuer diesen Fonds zustaendig ist oder war.</xs:documentation> </xs:annotation> </xs:element> |
diagram | |||||||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||||||
type | xs:date | ||||||
properties |
|
||||||
annotation |
|
||||||
source | <xs:element name="Until" type="xs:date" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="en">The closing date of the fund managers responsibility for the fund.</xs:documentation> <xs:documentation xml:lang="de">Datum bis wann der Fondsmanager fuer diesen Fonds zustaendig ist oder war.</xs:documentation> </xs:annotation> </xs:element> |
diagram | |||||||
namespace | http://www.fundsxml.org/XMLSchema/3.2 | ||||||
type | xs:string | ||||||
properties |
|
||||||
annotation |
|
||||||
source | <xs:element name="Text" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="en">Additional information related to the fund manager</xs:documentation> <xs:documentation xml:lang="de">Mit Freitext hat man wiederum die Moeglichkeit zusaetzliche Informationen zum Fondsmanger abzulegen.</xs:documentation> </xs:annotation> </xs:element> |
