complexType FeeType

diagram
namespace	http://www.fundsxml.org/XMLSchema/3.2.1
children	Name AbsoluteValue RelativeValue Text Range
used by	element  FeesType/Fee
annotation	documentation A type which represents one fee documentation Ein Typ, der eine Gebuehr darstellt.
source	<xs:complexType name="FeeType">   <xs:annotation>     <xs:documentation xml:lang="en">A type which represents one fee</xs:documentation>     <xs:documentation xml:lang="de">Ein Typ, der eine Gebuehr darstellt.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Name" type="xs:string">       <xs:annotation>         <xs:documentation xml:lang="en">The name of the fee. This Information comes from the dictionary.</xs:documentation>         <xs:documentation xml:lang="de">Der Name der Gebuehr. Diese information wird im Dictionary gepflegt.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:sequence>       <xs:choice>         <xs:element name="AbsoluteValue" type="xs:decimal">           <xs:annotation>             <xs:documentation xml:lang="en">Absolute value of a fee</xs:documentation>             <xs:documentation xml:lang="de">Absoluter Werte einer Gebuehr</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="RelativeValue" type="PercentageType">           <xs:annotation>             <xs:documentation xml:lang="en">Relative value of a fee</xs:documentation>             <xs:documentation xml:lang="de">Relativer Wert einer Gebuehr</xs:documentation>           </xs:annotation>         </xs:element>       </xs:choice>       <xs:element name="Text" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation xml:lang="en">A free textfield which can be used for fees that could not be expressed by a formula</xs:documentation>           <xs:documentation xml:lang="de">Ein Freitext fuer die Gebuehren, deren Werte nur durch Berechnungen zustande kommen.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>     <xs:element name="Range" minOccurs="0">       <xs:complexType>         <xs:sequence>           <xs:element name="Maximum" minOccurs="0">             <xs:complexType>               <xs:sequence>                 <xs:choice>                   <xs:element name="AbsoluteValue" type="xs:decimal">                     <xs:annotation>                       <xs:documentation xml:lang="en">Absolute value of a fee</xs:documentation>                       <xs:documentation xml:lang="de">Absoluter Werte einer Gebuehr</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="RelativeValue" type="PercentageType">                     <xs:annotation>                       <xs:documentation xml:lang="en">Relative value of a fee</xs:documentation>                       <xs:documentation xml:lang="de">Relativer Wert einer Gebuehr</xs:documentation>                     </xs:annotation>                   </xs:element>                 </xs:choice>                 <xs:element name="Text" type="xs:string" minOccurs="0">                   <xs:annotation>                     <xs:documentation xml:lang="en">A free textfield which can be used for fees that could not be expressed by a formula</xs:documentation>                     <xs:documentation xml:lang="de">Ein Freitext fuer die Gebuehren, deren Werte nur durch Berechnungen zustande kommen.</xs:documentation>                   </xs:annotation>                 </xs:element>               </xs:sequence>             </xs:complexType>           </xs:element>           <xs:element name="Minimum" minOccurs="0">             <xs:complexType>               <xs:sequence>                 <xs:choice>                   <xs:element name="AbsoluteValue" type="xs:decimal">                     <xs:annotation>                       <xs:documentation xml:lang="en">Absolute value of a fee</xs:documentation>                       <xs:documentation xml:lang="de">Absoluter Werte einer Gebuehr</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="RelativeValue" type="PercentageType">                     <xs:annotation>                       <xs:documentation xml:lang="en">Relative value of a fee</xs:documentation>                       <xs:documentation xml:lang="de">Relativer Wert einer Gebuehr</xs:documentation>                     </xs:annotation>                   </xs:element>                 </xs:choice>                 <xs:element name="Text" type="xs:string" minOccurs="0">                   <xs:annotation>                     <xs:documentation xml:lang="en">A free textfield which can be used for fees that could not be expressed by a formula</xs:documentation>                     <xs:documentation xml:lang="de">Ein Freitext fuer die Gebuehren, deren Werte nur durch Berechnungen zustande kommen.</xs:documentation>                   </xs:annotation>                 </xs:element>               </xs:sequence>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element FeeType/Name

diagram
namespace	http://www.fundsxml.org/XMLSchema/3.2.1
type	xs:string
properties	content  simple
annotation	documentation The name of the fee. This Information comes from the dictionary. documentation Der Name der Gebuehr. Diese information wird im Dictionary gepflegt.
source	<xs:element name="Name" type="xs:string">   <xs:annotation>     <xs:documentation xml:lang="en">The name of the fee. This Information comes from the dictionary.</xs:documentation>     <xs:documentation xml:lang="de">Der Name der Gebuehr. Diese information wird im Dictionary gepflegt.</xs:documentation>   </xs:annotation> </xs:element>

element FeeType/AbsoluteValue

diagram
namespace	http://www.fundsxml.org/XMLSchema/3.2.1
type	xs:decimal
properties	content  simple
annotation	documentation Absolute value of a fee documentation Absoluter Werte einer Gebuehr
source	<xs:element name="AbsoluteValue" type="xs:decimal">   <xs:annotation>     <xs:documentation xml:lang="en">Absolute value of a fee</xs:documentation>     <xs:documentation xml:lang="de">Absoluter Werte einer Gebuehr</xs:documentation>   </xs:annotation> </xs:element>

element FeeType/RelativeValue

diagram
namespace	http://www.fundsxml.org/XMLSchema/3.2.1
type	PercentageType
properties	content  simple
annotation	documentation Relative value of a fee documentation Relativer Wert einer Gebuehr
source	<xs:element name="RelativeValue" type="PercentageType">   <xs:annotation>     <xs:documentation xml:lang="en">Relative value of a fee</xs:documentation>     <xs:documentation xml:lang="de">Relativer Wert einer Gebuehr</xs:documentation>   </xs:annotation> </xs:element>

element FeeType/Text

diagram
namespace	http://www.fundsxml.org/XMLSchema/3.2.1
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation A free textfield which can be used for fees that could not be expressed by a formula documentation Ein Freitext fuer die Gebuehren, deren Werte nur durch Berechnungen zustande kommen.
source	<xs:element name="Text" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="en">A free textfield which can be used for fees that could not be expressed by a formula</xs:documentation>     <xs:documentation xml:lang="de">Ein Freitext fuer die Gebuehren, deren Werte nur durch Berechnungen zustande kommen.</xs:documentation>   </xs:annotation> </xs:element>

element FeeType/Range

diagram
namespace	http://www.fundsxml.org/XMLSchema/3.2.1
properties	minOcc  0 maxOcc  1 content  complex
children	Maximum Minimum
source	<xs:element name="Range" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="Maximum" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:choice>               <xs:element name="AbsoluteValue" type="xs:decimal">                 <xs:annotation>                   <xs:documentation xml:lang="en">Absolute value of a fee</xs:documentation>                   <xs:documentation xml:lang="de">Absoluter Werte einer Gebuehr</xs:documentation>                 </xs:annotation>               </xs:element>               <xs:element name="RelativeValue" type="PercentageType">                 <xs:annotation>                   <xs:documentation xml:lang="en">Relative value of a fee</xs:documentation>                   <xs:documentation xml:lang="de">Relativer Wert einer Gebuehr</xs:documentation>                 </xs:annotation>               </xs:element>             </xs:choice>             <xs:element name="Text" type="xs:string" minOccurs="0">               <xs:annotation>                 <xs:documentation xml:lang="en">A free textfield which can be used for fees that could not be expressed by a formula</xs:documentation>                 <xs:documentation xml:lang="de">Ein Freitext fuer die Gebuehren, deren Werte nur durch Berechnungen zustande kommen.</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="Minimum" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:choice>               <xs:element name="AbsoluteValue" type="xs:decimal">                 <xs:annotation>                   <xs:documentation xml:lang="en">Absolute value of a fee</xs:documentation>                   <xs:documentation xml:lang="de">Absoluter Werte einer Gebuehr</xs:documentation>                 </xs:annotation>               </xs:element>               <xs:element name="RelativeValue" type="PercentageType">                 <xs:annotation>                   <xs:documentation xml:lang="en">Relative value of a fee</xs:documentation>                   <xs:documentation xml:lang="de">Relativer Wert einer Gebuehr</xs:documentation>                 </xs:annotation>               </xs:element>             </xs:choice>             <xs:element name="Text" type="xs:string" minOccurs="0">               <xs:annotation>                 <xs:documentation xml:lang="en">A free textfield which can be used for fees that could not be expressed by a formula</xs:documentation>                 <xs:documentation xml:lang="de">Ein Freitext fuer die Gebuehren, deren Werte nur durch Berechnungen zustande kommen.</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

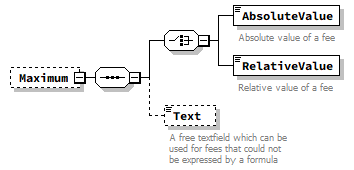

element FeeType/Range/Maximum

diagram
namespace	http://www.fundsxml.org/XMLSchema/3.2.1
properties	minOcc  0 maxOcc  1 content  complex
children	AbsoluteValue RelativeValue Text
source	<xs:element name="Maximum" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:choice>         <xs:element name="AbsoluteValue" type="xs:decimal">           <xs:annotation>             <xs:documentation xml:lang="en">Absolute value of a fee</xs:documentation>             <xs:documentation xml:lang="de">Absoluter Werte einer Gebuehr</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="RelativeValue" type="PercentageType">           <xs:annotation>             <xs:documentation xml:lang="en">Relative value of a fee</xs:documentation>             <xs:documentation xml:lang="de">Relativer Wert einer Gebuehr</xs:documentation>           </xs:annotation>         </xs:element>       </xs:choice>       <xs:element name="Text" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation xml:lang="en">A free textfield which can be used for fees that could not be expressed by a formula</xs:documentation>           <xs:documentation xml:lang="de">Ein Freitext fuer die Gebuehren, deren Werte nur durch Berechnungen zustande kommen.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element FeeType/Range/Maximum/AbsoluteValue

diagram
namespace	http://www.fundsxml.org/XMLSchema/3.2.1
type	xs:decimal
properties	content  simple
annotation	documentation Absolute value of a fee documentation Absoluter Werte einer Gebuehr
source	<xs:element name="AbsoluteValue" type="xs:decimal">   <xs:annotation>     <xs:documentation xml:lang="en">Absolute value of a fee</xs:documentation>     <xs:documentation xml:lang="de">Absoluter Werte einer Gebuehr</xs:documentation>   </xs:annotation> </xs:element>

element FeeType/Range/Maximum/RelativeValue

diagram
namespace	http://www.fundsxml.org/XMLSchema/3.2.1
type	PercentageType
properties	content  simple
annotation	documentation Relative value of a fee documentation Relativer Wert einer Gebuehr
source	<xs:element name="RelativeValue" type="PercentageType">   <xs:annotation>     <xs:documentation xml:lang="en">Relative value of a fee</xs:documentation>     <xs:documentation xml:lang="de">Relativer Wert einer Gebuehr</xs:documentation>   </xs:annotation> </xs:element>

element FeeType/Range/Maximum/Text

diagram
namespace	http://www.fundsxml.org/XMLSchema/3.2.1
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation A free textfield which can be used for fees that could not be expressed by a formula documentation Ein Freitext fuer die Gebuehren, deren Werte nur durch Berechnungen zustande kommen.
source	<xs:element name="Text" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="en">A free textfield which can be used for fees that could not be expressed by a formula</xs:documentation>     <xs:documentation xml:lang="de">Ein Freitext fuer die Gebuehren, deren Werte nur durch Berechnungen zustande kommen.</xs:documentation>   </xs:annotation> </xs:element>

element FeeType/Range/Minimum

diagram
namespace	http://www.fundsxml.org/XMLSchema/3.2.1
properties	minOcc  0 maxOcc  1 content  complex
children	AbsoluteValue RelativeValue Text
source	<xs:element name="Minimum" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:choice>         <xs:element name="AbsoluteValue" type="xs:decimal">           <xs:annotation>             <xs:documentation xml:lang="en">Absolute value of a fee</xs:documentation>             <xs:documentation xml:lang="de">Absoluter Werte einer Gebuehr</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="RelativeValue" type="PercentageType">           <xs:annotation>             <xs:documentation xml:lang="en">Relative value of a fee</xs:documentation>             <xs:documentation xml:lang="de">Relativer Wert einer Gebuehr</xs:documentation>           </xs:annotation>         </xs:element>       </xs:choice>       <xs:element name="Text" type="xs:string" minOccurs="0">         <xs:annotation>           <xs:documentation xml:lang="en">A free textfield which can be used for fees that could not be expressed by a formula</xs:documentation>           <xs:documentation xml:lang="de">Ein Freitext fuer die Gebuehren, deren Werte nur durch Berechnungen zustande kommen.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element FeeType/Range/Minimum/AbsoluteValue

diagram
namespace	http://www.fundsxml.org/XMLSchema/3.2.1
type	xs:decimal
properties	content  simple
annotation	documentation Absolute value of a fee documentation Absoluter Werte einer Gebuehr
source	<xs:element name="AbsoluteValue" type="xs:decimal">   <xs:annotation>     <xs:documentation xml:lang="en">Absolute value of a fee</xs:documentation>     <xs:documentation xml:lang="de">Absoluter Werte einer Gebuehr</xs:documentation>   </xs:annotation> </xs:element>

element FeeType/Range/Minimum/RelativeValue

diagram
namespace	http://www.fundsxml.org/XMLSchema/3.2.1
type	PercentageType
properties	content  simple
annotation	documentation Relative value of a fee documentation Relativer Wert einer Gebuehr
source	<xs:element name="RelativeValue" type="PercentageType">   <xs:annotation>     <xs:documentation xml:lang="en">Relative value of a fee</xs:documentation>     <xs:documentation xml:lang="de">Relativer Wert einer Gebuehr</xs:documentation>   </xs:annotation> </xs:element>

element FeeType/Range/Minimum/Text

diagram
namespace	http://www.fundsxml.org/XMLSchema/3.2.1
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation A free textfield which can be used for fees that could not be expressed by a formula documentation Ein Freitext fuer die Gebuehren, deren Werte nur durch Berechnungen zustande kommen.
source	<xs:element name="Text" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="en">A free textfield which can be used for fees that could not be expressed by a formula</xs:documentation>     <xs:documentation xml:lang="de">Ein Freitext fuer die Gebuehren, deren Werte nur durch Berechnungen zustande kommen.</xs:documentation>   </xs:annotation> </xs:element>
