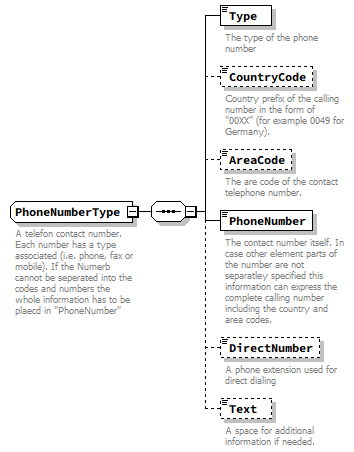

diagram | |||||
namespace | http://www.fundsxml.org/XMLSchema/3.0.6 | ||||
children | Type CountryCode AreaCode PhoneNumber DirectNumber Text | ||||
used by |
|
||||
annotation |
|
||||
source | <xs:complexType name="PhoneNumberType"> <xs:annotation> <xs:documentation xml:lang="en">A telefon contact number. Each number has a type associated (i.e. phone, fax or mobile). If the Numerb cannot be seperated into the codes and numbers the whole information has to be plaecd in "PhoneNumber"</xs:documentation> <xs:documentation xml:lang="de">Dieser Typ stellt eine Rufnummer dar. Sollten die Informationen nicht einzelnen vorliegen, so ist die Komplettinformation unter Rufnummer zu speichern.</xs:documentation> </xs:annotation> <xs:sequence> <xs:element name="Type" type="xs:string"> <xs:annotation> <xs:documentation xml:lang="en">The type of the phone number</xs:documentation> <xs:documentation xml:lang="de">Die Art der Rufnummer.</xs:documentation> </xs:annotation> </xs:element> <xs:element name="CountryCode" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="en">Country prefix of the calling number in the form of "00XX" (for example 0049 for Germany).</xs:documentation> <xs:documentation xml:lang="de">Die Landesvorwahl einer Rufnummer in der Form "00XX" z.B. 0049 fuer Deutschland.</xs:documentation> </xs:annotation> </xs:element> <xs:element name="AreaCode" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="en">The are code of the contact telephone number.</xs:documentation> <xs:documentation xml:lang="de">Die Ortsvorwahl mit fuehrender Null.</xs:documentation> </xs:annotation> </xs:element> <xs:element name="PhoneNumber" type="xs:string"> <xs:annotation> <xs:documentation xml:lang="en">The contact number itself. In case other element parts of the number are not separatley specified this information can express the complete calling number including the country and area codes.</xs:documentation> <xs:documentation xml:lang="de">Die eigentliche Rufnummer. Sollten die anderen Informationen nicht einzelnen vorliegen, so ist die Komplettinformation hier anzufuehren.</xs:documentation> </xs:annotation> </xs:element> <xs:element name="DirectNumber" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="en">A phone extension used for direct dialing</xs:documentation> <xs:documentation xml:lang="de">Die Durchwahl der Rufnummer</xs:documentation> </xs:annotation> </xs:element> <xs:element name="Text" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="en">A space for additional information if needed.</xs:documentation> <xs:documentation xml:lang="de">Auch hier koennen wieder zusaetzliche Informationen als Text abgelegt werden.</xs:documentation> </xs:annotation> </xs:element> </xs:sequence> </xs:complexType> |
diagram | |||||
namespace | http://www.fundsxml.org/XMLSchema/3.0.6 | ||||
type | xs:string | ||||
properties |
|
||||
annotation |
|
||||
source | <xs:element name="Type" type="xs:string"> <xs:annotation> <xs:documentation xml:lang="en">The type of the phone number</xs:documentation> <xs:documentation xml:lang="de">Die Art der Rufnummer.</xs:documentation> </xs:annotation> </xs:element> |
diagram | |||||||
namespace | http://www.fundsxml.org/XMLSchema/3.0.6 | ||||||
type | xs:string | ||||||
properties |
|
||||||
annotation |
|
||||||
source | <xs:element name="CountryCode" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="en">Country prefix of the calling number in the form of "00XX" (for example 0049 for Germany).</xs:documentation> <xs:documentation xml:lang="de">Die Landesvorwahl einer Rufnummer in der Form "00XX" z.B. 0049 fuer Deutschland.</xs:documentation> </xs:annotation> </xs:element> |
diagram | |||||||
namespace | http://www.fundsxml.org/XMLSchema/3.0.6 | ||||||
type | xs:string | ||||||
properties |
|
||||||
annotation |
|
||||||
source | <xs:element name="AreaCode" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="en">The are code of the contact telephone number.</xs:documentation> <xs:documentation xml:lang="de">Die Ortsvorwahl mit fuehrender Null.</xs:documentation> </xs:annotation> </xs:element> |
diagram | |||||
namespace | http://www.fundsxml.org/XMLSchema/3.0.6 | ||||
type | xs:string | ||||
properties |
|
||||
annotation |
|
||||
source | <xs:element name="PhoneNumber" type="xs:string"> <xs:annotation> <xs:documentation xml:lang="en">The contact number itself. In case other element parts of the number are not separatley specified this information can express the complete calling number including the country and area codes.</xs:documentation> <xs:documentation xml:lang="de">Die eigentliche Rufnummer. Sollten die anderen Informationen nicht einzelnen vorliegen, so ist die Komplettinformation hier anzufuehren.</xs:documentation> </xs:annotation> </xs:element> |
diagram | |||||||
namespace | http://www.fundsxml.org/XMLSchema/3.0.6 | ||||||
type | xs:string | ||||||
properties |
|
||||||
annotation |
|
||||||
source | <xs:element name="DirectNumber" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="en">A phone extension used for direct dialing</xs:documentation> <xs:documentation xml:lang="de">Die Durchwahl der Rufnummer</xs:documentation> </xs:annotation> </xs:element> |
diagram | |||||||
namespace | http://www.fundsxml.org/XMLSchema/3.0.6 | ||||||
type | xs:string | ||||||
properties |
|
||||||
annotation |
|
||||||
source | <xs:element name="Text" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="en">A space for additional information if needed.</xs:documentation> <xs:documentation xml:lang="de">Auch hier koennen wieder zusaetzliche Informationen als Text abgelegt werden.</xs:documentation> </xs:annotation> </xs:element> |
