complexType CurrencyChangeType

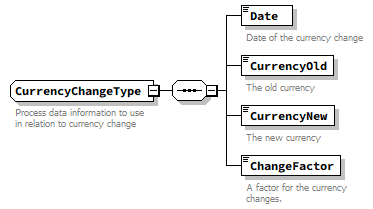

diagram
namespace	http://www.fundsxml.org/XMLSchema/3.1.1
children	Date CurrencyOld CurrencyNew ChangeFactor
used by	element  ProcessDataType/CurrencyChanges
annotation	documentation Process data information to use in relation to currency change
source	<xs:complexType name="CurrencyChangeType">   <xs:annotation>     <xs:documentation>Process data information to use in relation to currency change</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Date" type="xs:date">       <xs:annotation>         <xs:documentation xml:lang="en">Date of the currency change</xs:documentation>         <xs:documentation xml:lang="de">Datum der Waehrungsaenderung</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="CurrencyOld" type="ISOCurrencyCodeType">       <xs:annotation>         <xs:documentation xml:lang="en">The old currency</xs:documentation>         <xs:documentation xml:lang="de">Die alte Waehrung (vor der Aenderung)</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="CurrencyNew" type="ISOCurrencyCodeType">       <xs:annotation>         <xs:documentation xml:lang="en">The new currency</xs:documentation>         <xs:documentation xml:lang="de">Die neue Waehrung (nach der Aenderung)</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ChangeFactor" type="xs:decimal">       <xs:annotation>         <xs:documentation xml:lang="en">A factor for the currency changes.</xs:documentation>         <xs:documentation xml:lang="de">Der Faktor der Waehrungsaenderung um von der alten in die neue Waehrung umrechnen zu koennen.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element CurrencyChangeType/Date

diagram
namespace	http://www.fundsxml.org/XMLSchema/3.1.1
type	xs:date
properties	content  simple
annotation	documentation Date of the currency change documentation Datum der Waehrungsaenderung
source	<xs:element name="Date" type="xs:date">   <xs:annotation>     <xs:documentation xml:lang="en">Date of the currency change</xs:documentation>     <xs:documentation xml:lang="de">Datum der Waehrungsaenderung</xs:documentation>   </xs:annotation> </xs:element>

element CurrencyChangeType/CurrencyOld

diagram
namespace	http://www.fundsxml.org/XMLSchema/3.1.1
type	ISOCurrencyCodeType
properties	content  simple
facets	Kind  Value  Annotation minLength  3 maxLength  3
annotation	documentation The old currency documentation Die alte Waehrung (vor der Aenderung)
source	<xs:element name="CurrencyOld" type="ISOCurrencyCodeType">   <xs:annotation>     <xs:documentation xml:lang="en">The old currency</xs:documentation>     <xs:documentation xml:lang="de">Die alte Waehrung (vor der Aenderung)</xs:documentation>   </xs:annotation> </xs:element>

element CurrencyChangeType/CurrencyNew

diagram
namespace	http://www.fundsxml.org/XMLSchema/3.1.1
type	ISOCurrencyCodeType
properties	content  simple
facets	Kind  Value  Annotation minLength  3 maxLength  3
annotation	documentation The new currency documentation Die neue Waehrung (nach der Aenderung)
source	<xs:element name="CurrencyNew" type="ISOCurrencyCodeType">   <xs:annotation>     <xs:documentation xml:lang="en">The new currency</xs:documentation>     <xs:documentation xml:lang="de">Die neue Waehrung (nach der Aenderung)</xs:documentation>   </xs:annotation> </xs:element>

element CurrencyChangeType/ChangeFactor

diagram
namespace	http://www.fundsxml.org/XMLSchema/3.1.1
type	xs:decimal
properties	content  simple
annotation	documentation A factor for the currency changes. documentation Der Faktor der Waehrungsaenderung um von der alten in die neue Waehrung umrechnen zu koennen.
source	<xs:element name="ChangeFactor" type="xs:decimal">   <xs:annotation>     <xs:documentation xml:lang="en">A factor for the currency changes.</xs:documentation>     <xs:documentation xml:lang="de">Der Faktor der Waehrungsaenderung um von der alten in die neue Waehrung umrechnen zu koennen.</xs:documentation>   </xs:annotation> </xs:element>
