diagram | |||||
namespace | http://www.fundsxml.org | ||||
children | DataSupplier Name CompanyID SecurityCodes FundCurrency FundFacts ProcessData CountrySpecificData | ||||
used by |
|
||||
annotation |
|
||||
source | <xs:complexType name="FundType"> <xs:annotation> <xs:documentation xml:lang="de">Der FundTyp stellt die Definition fuer alle Informationen ueber einen Fonds dar. Alle Fondsinformationen eines Fonds werden unterhalb dieses Elementes abgelegt. Eine Aufteilung in Stammdaten, Verlaufsdaten und landesspezifische Daten erscheint sinnvoll. Zur Identifizierung sind Name, WKN bzw. ISIN und die Fondswaehrung notwendig.</xs:documentation> <xs:documentation xml:lang="en">Represents all data about the fund. To identify the fund it is neccessary to fill the elements name, isin or country security code and the fundcurency.</xs:documentation> </xs:annotation> <xs:sequence> <xs:element name="DataSupplier" type="DataSupplierType" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="de">Das Element bezeichnet den Datenlieferanten dieses Elements. Die Datenlieferanten werdem in der DataSupplierList aufgelistet.</xs:documentation> <xs:documentation xml:lang="en">This element contains the Name of the Investment Company that has produced this document </xs:documentation> </xs:annotation> </xs:element> <xs:element name="Name" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="de">Der Name des Fonds</xs:documentation> <xs:documentation xml:lang="en">The name of the fund</xs:documentation> </xs:annotation> </xs:element> <xs:element name="CompanyID" type="xs:int" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="de">Firmenidentifikation, zu der der Fond gehoert. Sie dient als Verweis auf den Abschnitt, der die Firmenidentifikation enthaelt.</xs:documentation> <xs:documentation xml:lang="en">This is a unique ID that represents the company a fund belongs to. The ID is used as a reference to the section of the schema that describes the Company information.</xs:documentation> </xs:annotation> </xs:element> <xs:element name="SecurityCodes"> <xs:annotation> <xs:documentation>Kennnummern des Fonds: Mit den Kennnummern werden nationale und internationale sowie nichtoffizielle (von Finanzinformationsgesellschaften stammende) Fondsidentifizierungen definiert.</xs:documentation> </xs:annotation> <xs:complexType> <xs:complexContent> <xs:extension base="SecurityCodesType"> <xs:attribute name="isPartOfUK" type="xs:boolean" use="optional" fixed="true"/> </xs:extension> </xs:complexContent> </xs:complexType> </xs:element> <xs:element name="FundCurrency" type="ISOCurrencyCodeType" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="de">Die Fondswaehrung, in der der Fonds gefuehrt wird als ISO-Code.</xs:documentation> <xs:documentation xml:lang="en">The currency of the fund in the form of ISO-code.</xs:documentation> </xs:annotation> </xs:element> <xs:element name="FundFacts" type="FundFactsType" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation xml:lang="de">Stammdaten des Fonds: Die Stammdaten definieren die Informationen, die zur Identifizierung des Fonds notwendig sind, sowie die grundlegenden Informationen eines Fonds, die sich nicht regelmaeszig aendern. </xs:documentation> <xs:documentation xml:lang="en">Master data of the fund:The master data defines the information which are necessary for the identification of the funds as well as the basic information of a fund which does not change on a regular basis.</xs:documentation> </xs:annotation> </xs:element> <xs:element name="ProcessData" type="ProcessDataType" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="de">Verlaufsdaten eines Fonds: Die Verlaufsdaten definieren die Informationen eines Fonds, die sich in regelmaeszigen Abstaenden aendern oder die historisierbar abgelegt werden muessen.</xs:documentation> <xs:documentation xml:lang="en">Course data of a fund:the process data define the dynamic information of a fund which changes or must be stored with a history.</xs:documentation> </xs:annotation> </xs:element> <xs:element name="CountrySpecificData" type="CountrySpecificDataType" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="de">Landesspezifische Daten eines Fonds: Unterhalb der landesspezifischen Daten werden alle Informationen eines Fonds abgelegt, die nur fuer ein bestimmtes Land gueltig sind. Dies sind insbesondere Steuerdaten, die fuer jedes Land nicht nur andere Werte annehmen, sondern auch in einer voellig anderen Struktur dargestellt werden muessen.</xs:documentation> </xs:annotation> </xs:element> </xs:sequence> </xs:complexType> |
diagram | |||||||
namespace | http://www.fundsxml.org | ||||||
type | DataSupplierType | ||||||
properties |
|
||||||
children | Short Name TypeOfDataSupplier | ||||||
annotation |
|
||||||
source | <xs:element name="DataSupplier" type="DataSupplierType" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="de">Das Element bezeichnet den Datenlieferanten dieses Elements. Die Datenlieferanten werdem in der DataSupplierList aufgelistet.</xs:documentation> <xs:documentation xml:lang="en">This element contains the Name of the Investment Company that has produced this document </xs:documentation> </xs:annotation> </xs:element> |
diagram | |||||||
namespace | http://www.fundsxml.org | ||||||
type | xs:string | ||||||
properties |
|
||||||
annotation |
|
||||||
source | <xs:element name="Name" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="de">Der Name des Fonds</xs:documentation> <xs:documentation xml:lang="en">The name of the fund</xs:documentation> </xs:annotation> </xs:element> |
diagram | |||||||
namespace | http://www.fundsxml.org | ||||||
type | xs:int | ||||||
properties |
|
||||||
annotation |
|
||||||
source | <xs:element name="CompanyID" type="xs:int" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="de">Firmenidentifikation, zu der der Fond gehoert. Sie dient als Verweis auf den Abschnitt, der die Firmenidentifikation enthaelt.</xs:documentation> <xs:documentation xml:lang="en">This is a unique ID that represents the company a fund belongs to. The ID is used as a reference to the section of the schema that describes the Company information.</xs:documentation> </xs:annotation> </xs:element> |
diagram | |||||||||||||
namespace | http://www.fundsxml.org | ||||||||||||
type | extension of SecurityCodesType | ||||||||||||
properties |
|
||||||||||||
children | ISIN CUSIP SEDOL CountrySecurityCode OtherSecurityCodes UniqueID | ||||||||||||
attributes |
|
||||||||||||
annotation |
|
||||||||||||
source | <xs:element name="SecurityCodes"> <xs:annotation> <xs:documentation>Kennnummern des Fonds: Mit den Kennnummern werden nationale und internationale sowie nichtoffizielle (von Finanzinformationsgesellschaften stammende) Fondsidentifizierungen definiert.</xs:documentation> </xs:annotation> <xs:complexType> <xs:complexContent> <xs:extension base="SecurityCodesType"> <xs:attribute name="isPartOfUK" type="xs:boolean" use="optional" fixed="true"/> </xs:extension> </xs:complexContent> </xs:complexType> </xs:element> |
type | xs:boolean | ||||
properties |
|
||||
source | <xs:attribute name="isPartOfUK" type="xs:boolean" use="optional" fixed="true"/> |
diagram | ||||||||||
namespace | http://www.fundsxml.org | |||||||||
type | ISOCurrencyCodeType | |||||||||
properties |
|
|||||||||
facets |
|
|||||||||
annotation |
|
|||||||||
source | <xs:element name="FundCurrency" type="ISOCurrencyCodeType" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="de">Die Fondswaehrung, in der der Fonds gefuehrt wird als ISO-Code.</xs:documentation> <xs:documentation xml:lang="en">The currency of the fund in the form of ISO-code.</xs:documentation> </xs:annotation> </xs:element> |
diagram | |||||||
namespace | http://www.fundsxml.org | ||||||
type | FundFactsType | ||||||
properties |
|
||||||
children | ShareClassSecurityType CompanyID MainShareClass EarningUse FundManager Custodian Policy UmbrellaFundName Maturity FundType OldFundName KeyFacts Pricing GuaranteedMaturity BenchmarkIndex URLFactsheet FundState Administrator Advisor Auditor DomicileCountry Fees TransferAgent Umbrella ContentType CloseEndFund FeederFund MasterFund PropertyFund SpecialFund RetailFund | ||||||
annotation |
|
||||||
source | <xs:element name="FundFacts" type="FundFactsType" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation xml:lang="de">Stammdaten des Fonds: Die Stammdaten definieren die Informationen, die zur Identifizierung des Fonds notwendig sind, sowie die grundlegenden Informationen eines Fonds, die sich nicht regelmaeszig aendern. </xs:documentation> <xs:documentation xml:lang="en">Master data of the fund:The master data defines the information which are necessary for the identification of the funds as well as the basic information of a fund which does not change on a regular basis.</xs:documentation> </xs:annotation> </xs:element> |
diagram | |||||||
namespace | http://www.fundsxml.org | ||||||
type | ProcessDataType | ||||||
properties |
|
||||||
children | Split Ratings Valuation TotalNetAssets Prices Portfolio Fees CurrencyChanges Distributions DistributionStatus ReportingPeriod CorporateAction | ||||||
annotation |
|
||||||
source | <xs:element name="ProcessData" type="ProcessDataType" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="de">Verlaufsdaten eines Fonds: Die Verlaufsdaten definieren die Informationen eines Fonds, die sich in regelmaeszigen Abstaenden aendern oder die historisierbar abgelegt werden muessen.</xs:documentation> <xs:documentation xml:lang="en">Course data of a fund:the process data define the dynamic information of a fund which changes or must be stored with a history.</xs:documentation> </xs:annotation> </xs:element> |

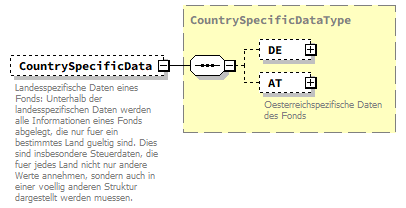

diagram | |||||||
namespace | http://www.fundsxml.org | ||||||
type | CountrySpecificDataType | ||||||
properties |
|
||||||
children | DE AT | ||||||
annotation |
|
||||||
source | <xs:element name="CountrySpecificData" type="CountrySpecificDataType" minOccurs="0"> <xs:annotation> <xs:documentation xml:lang="de">Landesspezifische Daten eines Fonds: Unterhalb der landesspezifischen Daten werden alle Informationen eines Fonds abgelegt, die nur fuer ein bestimmtes Land gueltig sind. Dies sind insbesondere Steuerdaten, die fuer jedes Land nicht nur andere Werte annehmen, sondern auch in einer voellig anderen Struktur dargestellt werden muessen.</xs:documentation> </xs:annotation> </xs:element> |
